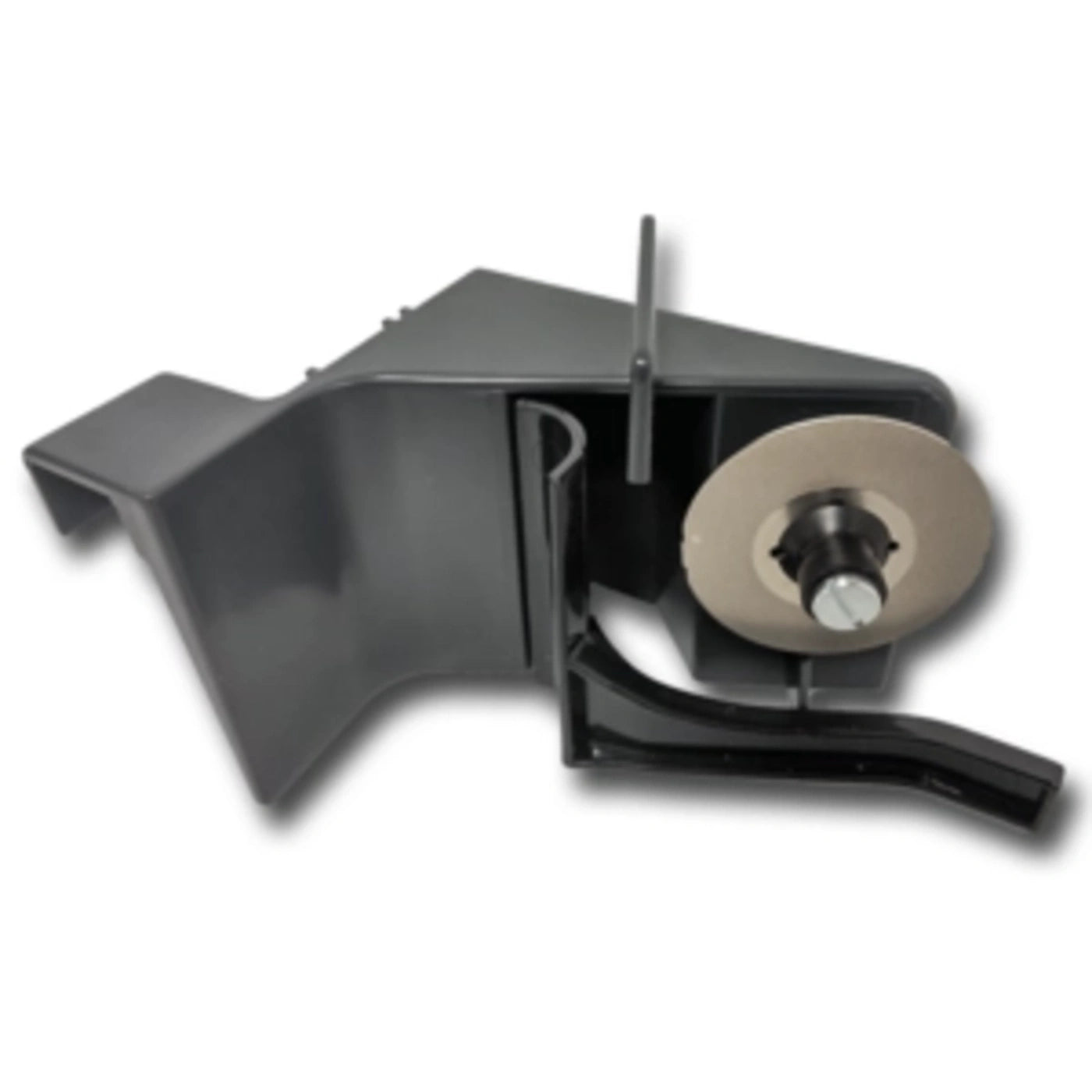

Diamond Knife Sharpener D-1000

Instructions for resharpening with the D-1000:

• Place the knife sharpener on the carriage of your universal cutter so that the mounting bracket grips the rear wall of the carriage.
• Open the stop up to 13 mm cutting thickness.
• Push the knife sharpener against the stop.
• Move the carriage with the sharpener to the knife.
• Switch on the machine and let it run for approx. 10 seconds.
• Then press against the pressure lever with your index finger so that the honing element rests against the knife edge (let run for approx. 2 seconds).
• Pull back the slide, switch off the machine.
• The honing element restores the burr created during sharpening to a vertical position. This guarantees an extremely sharp knife edge.
• If the cutting result still does not meet your expectations, repeat the sharpening process.

*This knife sharpener is suitable for smooth knives. It fits on all devices with angular carriage support.

You can use this article for the following GRAEF products:

• 168 Comfort, 168 Comfort Plus
• Classic C20, Classic C90, Classic C170, Classic C180, Classic C184, Classic C185
• Economic E130, Economic E132, Economic E136, Economic E142, Economic E144, Economic E145, Economic E146, Economic E158
• EH170T, EH170T2, EH174T, EH174T2
• EVO E10, EVO E20, EVO E 22, EVO E80, EVO E11, EVO E21, EVO E81
• FA170T, FA170T2, FA174T, FA174T2, FA180T2 (eckige Schlittenauflage)
• Futura F1, Futura F5, Futura F20, F1 Futura CH
• Master M20, Master M90, Master M91, Master M182, Master M188, Master M190, Master M196 ultra
• Navis N1
• SKS700
• Tendenza T5, Tendenza T5 TWIN, Tendenza T10
• Vivo V10, Vivo V11, Vivo V20, Vivo V21

Features:

• The Graef Diamond Knife Sharpener D-1000 is ideal for resharpening all-in-one slicer knives with a smooth edge
• The diamond-coated grinding wheel quickly produces the original sharpness of your Graef universal slicer knife (for knives with Ø 170 mm). This ensures the best cutting results.
• The D-1000 is placed on the carriage of the universal slicer to resharpen the knife.
• When resharpening with the D-1000, the knife is not heated. In this way, the knife sharpener guarantees the least amount of material removal and a long service life of the knife.
• The grinding wheel and the honing element of the D-1000 are diamond-coated. The pressure lever ensures safe and handy operation.
